OEM instruments
Properties:Orthopedic Surgical Instruments
Instrument classification:Class I
Material:Stainless Steel
Warranty:1 year
After-sale Service:Online Technical Support

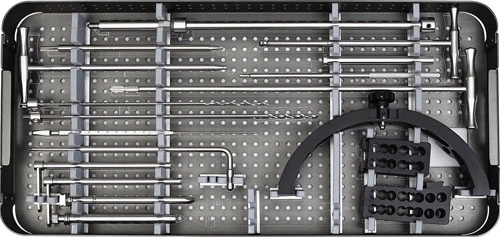

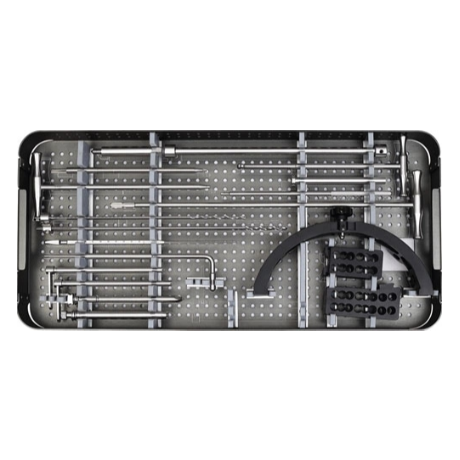

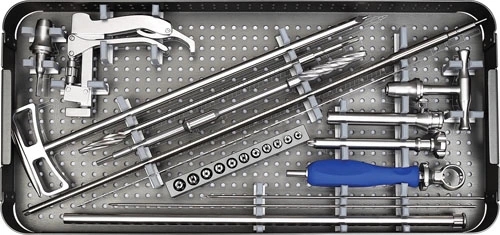

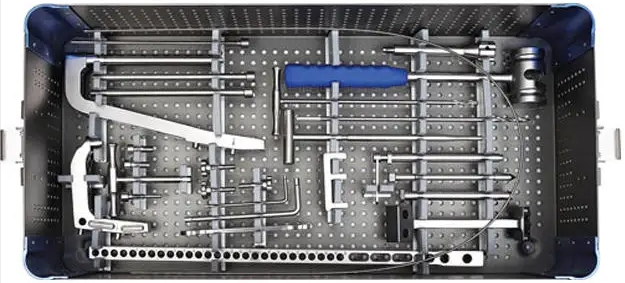

Product Details
| NO. | Product name | Size | Qty |
| 1 | handle | short | 1 |
| 2 | handle | long | 1 |
| 3 | proximal target device | 1 | |
| 4 | Extension frame | 1 | |
| 5 | Extended side frame | 1 | |
| 6 | lock wheel for target device | 1 | |
| 7 | Limit device spanner | SW3 | 1 |
| 8 | lock wheel spanner | SW5 | 1 |
| 9 | guide rod | 1 | |
| 10 | side frame | 1 | |
| 11 | positioning rod | 1 | |
| 12 | connecting bolt for short main nail | 2 | |
| 13 | connecting bolt for long main nail | 2 | |
| 14 | Short compression bolt | 1 | |
| 15 | long compression bolt | 1 | |
| 16 | locking block | 1 | |
| 17 | Positioning rod drill | Φ5.2 | 1 |
| 18 | Positioning rod flat head drill | Φ5.2 | 1 |
| 19 | drill bit | Φ4.0 | 3 |
| 20 | limit device for dirll | Φ4.0 | 1 |
| 21 | double open end wrench | 1 | |
| 22 | sliding hammer | 1 | |
| 23 | drilling aiming device | M6 | 3 |
| 24 | soft tissue protector | 1 | |
| 25 | outer sleeve | 3 | |
| 26 | Positioning rod drill sleeve | Φ5.2 | 1 |
| 27 | short driver-extractor | 1 | |
| 28 | long driver-extractor | 1 | |
| 29 | Connecting bolt wrench | SW6.5 | 1 |
| 30 | Connecting screw rod universal wrench | SW6.5 | 1 |
| 31 | flexible reamer shaft | 2 | |
| 32 | flexible reamer bit holder (common) | 1 | |
| 33 | flexible reamer bit | Φ7.5 | 1 |
| flexible reamer bit | Φ8 | 1 | |
| flexible reamer bit | Φ8.5 | 1 | |
| flexible reamer bit | Φ9 | 1 | |
| flexible reamer bit | Φ9.5 | 1 | |
| flexible reamer bit | Φ10 | 1 | |
| flexible reamer bit | Φ10.5 | 1 | |
| flexible reamer bit | Φ11 | 1 | |
| flexible reamer bit | Φ11.5 | 1 | |
| flexible reamer bit | Φ12 | 1 | |
| flexible reamer bit | Φ12.5 | 1 | |
| 34 | drill sleeves | 1 | |
| 35 | Guider outer sleeve | 1 | |
| 36 | guider handle | 1 | |
| 37 | quick coupling handle | 1 | |
| 38 | flexible reamer drill | Φ12.8/Φ3.2 | 1 |
| 39 | Proximal reamer drill | Φ12.8/Φ3.2 | 1 |
| 40 | T-type open device | 1 | |
| 41 | T-type open pin | 1 | |
| 42 | guide pin control device | 1 | |
| 43 | thread pin | Φ3.2*300 | 2 |
| 44 | thread pin | Φ3.2*400 | 2 |
| 45 | Reduction rod | 1 | |
| 46 | ball head guide pin | 1 | |
| 47 | depth gauge for guide pin | 1 | |
| 48 | template for development | 1 | |
| 49 | T type locking screw wrench | SW3.5 | 1 |
| 50 | locking screw wrench | SW3.5 | 1 |
| 51 | end cap hexagonal holder | SW3.5 | 1 |
| 52 | Right angle positioning rod | 1 | |
| 53 | depth gauge for bone diameter | 1 | |
| 54 | Drill sleeve | Φ4.0 | 2 |
| 55 | Drill sleeve | Φ8.6/Φ4.0 | 2 |
| 56 | trocar | Φ11/Φ8.6 | 2 |
| 57 | Guide cone | Φ8.6 | 1 |
| 58 | 2.5 layer instrument box | 1 |
