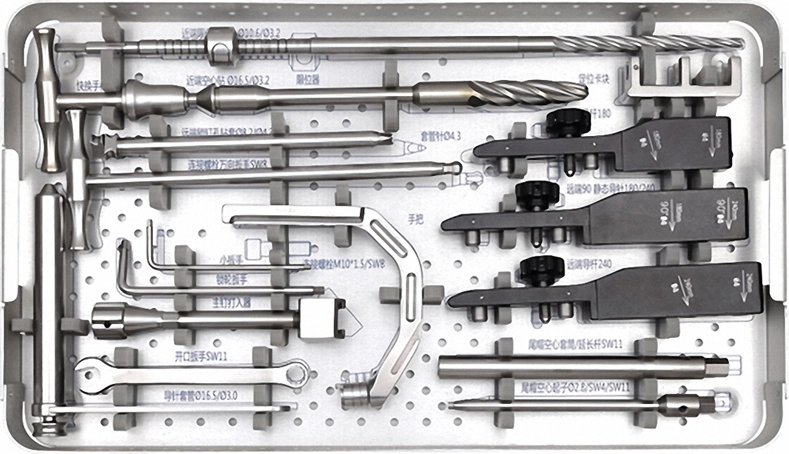

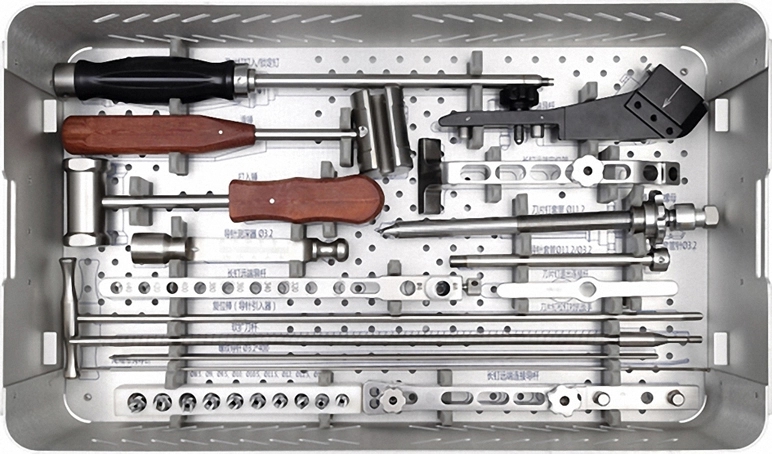

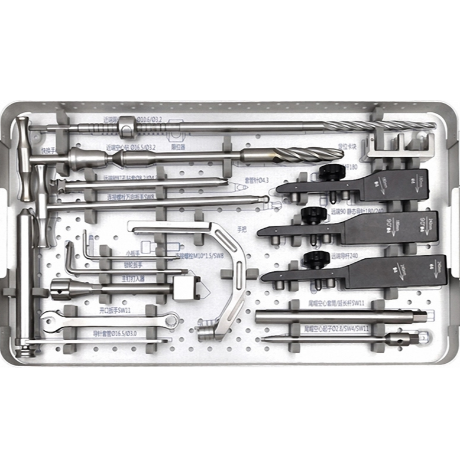

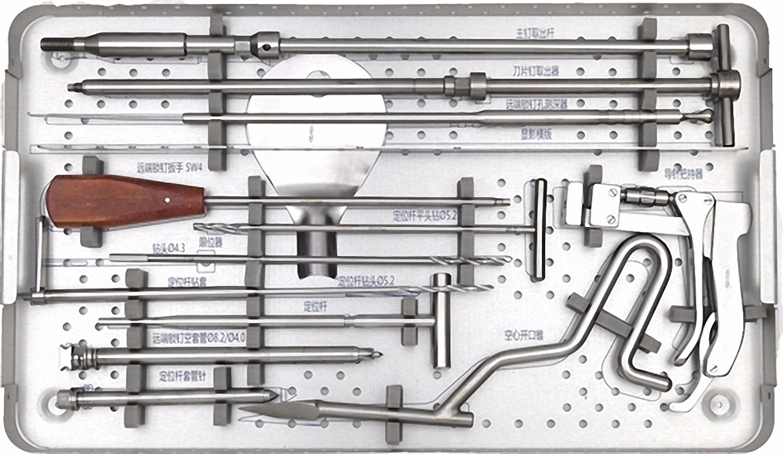

OEM instruments
Properties:Orthopedic Surgical Instruments
Instrument classification:Class I
Material:Stainless Steel
Warranty:1 year
After-sale Service:Online Technical Support
Product Details
| NO. | Product name | Size | QTY |
| 1 | Template for development | 1 | |
| 2 | Guide sleeve | long | 1 |
| 3 | Guide pin sleeve | Φ 4.3 | 1 |
| 4 | Handle w/quick clouping | Φ 4.3 | 1 |
| 5 | Proximal hollow drill bit | Φ 4.3 | 1 |
| 6 | Hollow open tapper | 1 | |
| 7 | Protected plate for soft tissue | 1 | |
| 8 | Handle w/quick clouping | SW5/M3.5 | 1 |
| 9 | Connection bolt | Φ6.4 | 1 |
| 10 | Universal wrench of connection bolt | Φ6.4 | 1 |
| 11 | Main pin impactor | Φ6.4 | 1 |
| 12 | Open wrench | Φ2.5*320 | 1 |
| 13 | Impactor hammer | Φ2.5*320 | 1 |
| 14 | Proximal guide bar | Φ2.5*320 | 1 |
| 15 | guide sleeve | Φ 2.5 | 1 |
| 16 | Support/compression nut | 1 | |
| 17 | Guide sleeve for pins | 1 | |
| 18 | Sleeve Pins | SW3 | 1 |
| 19 | Threaded pin | 1 | |
| 20 | Depth gauge | 1 | |
| 21 | Proximal hollow position stopper | 1 | |
| 22 | Position stopper | 1 | |
| 23 | Lag screw impactor/locking screw driver | 1 | |
| 24 | Lag screw extracting connection rod | Φ2.5/Φ8 | 1 |
| 25 | Lag screw extracting wrench | Φ8.5 | 1 |
| 26 | Distal guide bar | Φ9 | 1 |
| 27 | Distal guide bar | Φ9.5 | 1 |
| 28 | Distal 90° guide bar | Φ10 | 1 |
| 29 | Distal locking pin sleeve | Φ 10.5 | 2 |
| 30 | Distal locking pin drill sleeve | Φ 11 | 2 |
| 31 | Sleeve Pin | 1 | |
| 32 | Drill bit | Φ 11.5 | 2 |
| 33 | Position stopper | Φ 12 | 1 |
| 34 | Small wrench | Φ 12.5 | 1 |
| 35 | Distal locking holes depth gauge | Φ 13 | 1 |
| 36 | Distal locking screw wrench | Φ 2.5/Φ4 | 1 |
| 37 | Tail hook guide pin | 1 | |
| 38 | Tail hollow screw driver | SW6.5 | 1 |
| 39 | Tail hollow sleeve/extension rod | 1 | |
| 40 | Blade nail device | 1 | |
| 41 | Sliding hammer | 1 | |
| 42 | Nail remove rod | 1 | |
| 43 | Reduction rod(guide pin leading device) | 1 | |
| 44 | Ball head guide pin | 1 | |
| 45 | Guide pin control device | 1 | |
| 46 | Flexible Reamer Shaft | 1 | |
| 47 | Flexible Reamer Bit | 7 | |
| 48 | Long nail distal connection guide pin | SW5 | 1 |
| 49 | Long nail distal connection guide bar lock wheels | 1 | |
| 50 | Locking wheels spanner | short | 1 |
| 51 | Long nail distal guide bar | Φ5.2 | 1 |
| 52 | Long nail distal guide pin lock wheels | Φ5.2 | 1 |
| 53 | Long nail distal positioning frame | Φ5.2 | 1 |
| 54 | Long nail distal positioning frame lock wheels | SW6.5 | 1 |
| 55 | Position pipe | 1 | |
| 56 | Positioning stem bushing needle | 1 | |
| 57 | Positioning stem drilling sheath | 1 | |
| 58 | Positioning drill rod | 1 | |
| 59 | Positioning stem flats drill | 1 | |
| 60 | Positioning rod | 1 | |
| 61 | Positioning card | 1 | |
| 62 | Instrument kit | 1 |
