OEM instruments
Properties:Orthopedic Surgical Instruments
Instrument classification:Class I
Material:Stainless Steel
Warranty:1 year
After-sale Service:Online Technical Support

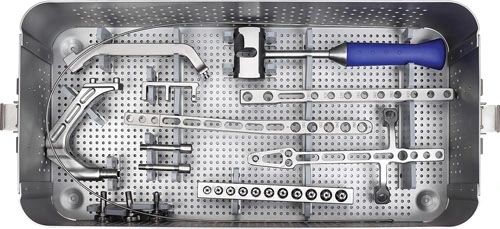

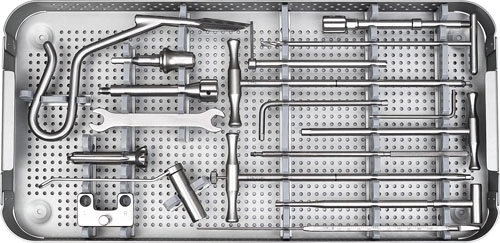

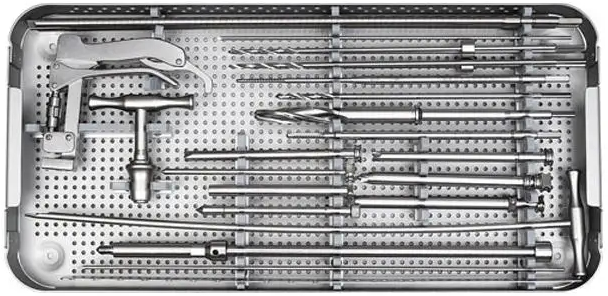

Product Details
| NO. | Product name | Size | Qty |
| 1 | Developing Calculator | φ9.5-φ12×200-400 | 1 |
| 2 | Guide pin | φ3.2×300 | 2 |
| 3 | Guide pin | φ3.2×400 | 2 |
| 4 | Porous guide pin sleeve | φ3.2/φ14 | 1 |
| 5 | Guide Sleeve | φ14 | 1 |
| 6 | Proximal Hollow Drill Bit | φ3.2/φ14 | 1 |
| 7 | Quick Coupling Handle | φ8 | 1 |
| 8 | Adapter | φ8 | 1 |
| 9 | Cannulated AWL | φ13.5/φ4 | 1 |
| 10 | Reduction Bod(Guide Pin) | 1 | |
| 11 | Guide Pin Holder | 1 | |
| 12 | Ball Head Guide Pin | φ2.5/1000 | 1 |
| 13 | Reamer Shaft | 2 | |
| 14 | Shelf for reamer bit | 1 | |
| 15 | Flexible Reamer Bit | φ8.5/φ13.5 | 11 |
| 16 | Handle | 1 | |
| 17 | Connection Screw | M8×1/SW6.5 | 2 |
| 18 | Extension Connection Bolt | M8×1/SW11 | 1 |
| 19 | Connection Rod Driver | SW6.5 | 1 |
| 20 | Main nail pull connection rod | M8×1 | 1 |
| 21 | Wrench | SW11 | 1 |
| 22 | Pulling Rod | M8×1 | 1 |
| 23 | Sliding Hammer | 1 | |
| 24 | Proximal Guide Bar | 1 | |
| 25 | Handle Connection Locking Wheels | M8×1/SW5 | 1 |
| 26 | Guide Pin Locking Wheels | M8×1/SW5 | 2 |
| 27 | Locking Wheels Spanner | SW5 | 1 |
| 28 | Sleeve | φ11/φ8.6 | 2 |
| 29 | Lag screw Drill Slleve | φ5.0 | 2 |
| 30 | Locking Screw Drill Sleeve | φ4.3 | 2 |
| 31 | Lag screw Sleeve Pin | φ5.0 | 1 |
| 32 | Locking Screw Sleeve Pin | φ4.3 | 1 |
| 33 | Step drill (a stopper) | φ3.5/φ5.0 | 2 |
| 34 | Bone drill (a stopper) | φ4.3*300 | 2 |
| 35 | Depth Gauge | 1 | |
| 36 | Tap for Lag Screw | φ5.0 | 1 |
| 37 | Tap for Lag Screw | φ6.5 | 1 |
| 38 | Wrench for Lag Screw | M2.5/SW5.0 | 1 |
| 39 | Distal guide rod | 280-400 | 1 |
| 40 | Distal positioning frame | 1 | |
| 41 | Short nail distal guide rod | 200-260 | 1 |
| 42 | Positioning pipe | φ8.1/φ10 | 1 |
| 43 | Positioning stem drill sheath | φ5.2 | 1 |
| 44 | Positioning stem bushing needle | 1 | |
| 45 | Positioning bone drill | φ5.2 | 1 |
| 46 | Positioning stem flats drill | φ5.2 | 1 |
| 47 | Positioning rod | 1 | |
| 48 | Positioning card | 1 | |
| 49 | Wrench for locking screw | SW4.0 | 1 |
| 50 | End cap holder | SW4.0 | 1 |
| 51 | Left and right positioning block | 1 | |
| 52 | Left and right positioning block lock wheel | 1 | |
| 53 | Instrument kit | 1 |
